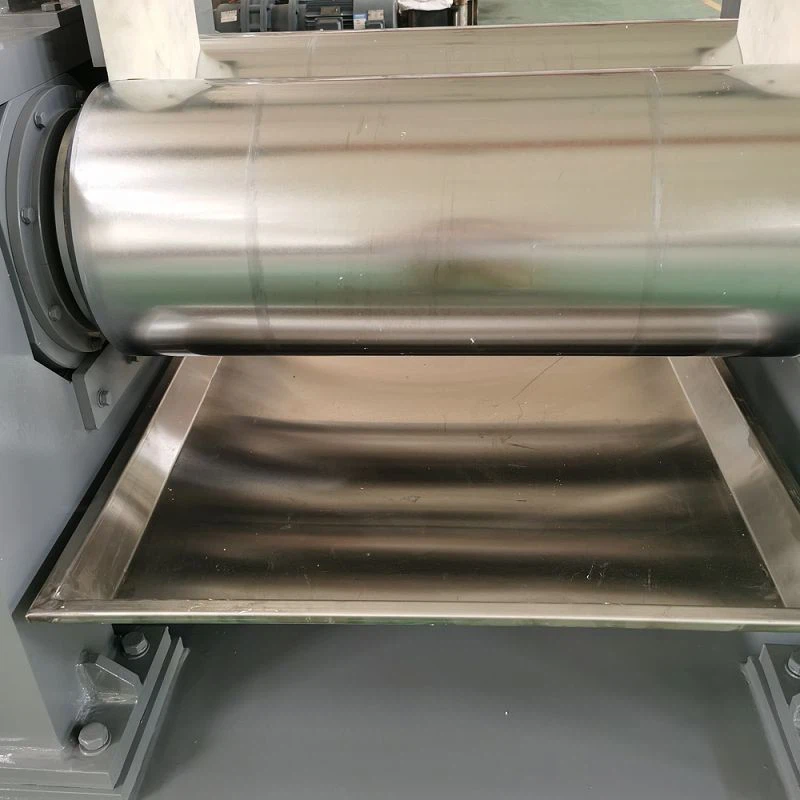

Rubber Mixing Mill Machine
Introduction
This machine is mainly used for the mixing, plastic refining, hot refining and pressing strip of natural rubber and synthetic rubber. With hardened gear reducer and welding base plate, this machine has the advantages of high efficiency, compact conformation, low noise, good antifriction of tooth-face compared with the same kind of equipment.
Technical Parameter
|
Model |
XK-160 |
XK-250 |
XK-360 |
XK-400 |
XK-450 |
XK-550 |
XK-560 |
|
Roller diameter (mm) |
160 |
250 |
360 |
400 |
450 |
550 |
560-510 |
|
Working length of roller(mm) |
320 |
620 |
900 |
1000 |
1200 |
1500 |
1530 |
|
Front roller line speed (r/min) |
9 |
16.3 |
16.7 |
18.7 |
21.5 |
31.6 |
26.6 |
|
Roller speed ratio (r/min) |
1:1.35 |
1:1.1 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.09 |
1:1.2 |
|
Max roller distance(mm) |
4.5 |
8 |
10 |
10 |
12 |
15 |
15 |
|
Once feeding capacity (KG) |
1-2 |
10-15 |
20-25 |
18-35 |
50 |
50-65 |
50-65 |
|
Motor Power(KW) |
5.5 |
18.5 |
30 |
45 |
55 |
110 |
90 |
|
Overall dimension(mm) |
1132*920*1394 |
2722*1115*1345 |
3820*1530*1700 |
4270*1803*1765 |
4915*1808*1794 |
6263*2270*1846 |
6293*2270*1846 |
|
Weight (KG) |
2000 |
3200 |
6500 |
8300 |
11400 |
20000 |
20000 |
